MTX400 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Multicore)

Flame Retardant Power & Control Cables (Multicore)

Application
These unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352.
These cables are flame retardant, low smoke & halogen free.


Standards
 IEC 60092-350/351/353/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

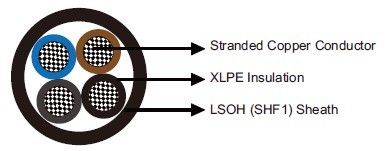

Construction
 Conductors: Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.
 Insulation: XLPE.
 Filler (optional): Halogen free filling compound.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Two cores: Blue, Brown.
Three cores: Brown, Black, Grey.
Four cores: Blue, Brown, Black, Grey.
Five cores: Blue, Brown, Black, Grey, Black.
Multi cores: White with black numbers.
With yellow/green (optional)
Two cores + earth (3G): Yellow/green, Blue, Brown.
Three cores + earth (4G): Yellow/green, Brown, Black, Grey.
Four cores + earth (5G): Yellow/green, Blue, Brown, Black, Grey.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight
MTX400 1RZ1-R Multicore 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall Diameter mm

Nominal Weight kg/km

MTX400-1RZ1-R-2C1.5

2×1.5

0.7

1.1

8.4

80

MTX400-1RZ1-R-2C2.5

2×2.5

0.7

1.1

9.2

100

MTX400-1RZ1-R-2C4

2×4

0.9

1.1

11.1

135

MTX400-1RZ1-R-2C6

2×6

0.9

1.2

12.4

185

MTX400-1RZ1-R-2C10

2×10

0.9

1.2

14.1

270

MTX400-1RZ1-R-2C16

2×16

0.9

1.3

16.4

400

MTX400-1RZ1-R-2C25

2×25

0.9

1.3

18.8

700

MTX400-1RZ1-R-2C35

2×35

0.9

1.3

21.4

930

MTX400-1RZ1-R-2C50

2×50

1.0

1.3

24.2

1290

MTX400-1RZ1-R-3C1.5(3G1.5)

3×(G)1.5

0.7

1.1

8.8

100

MTX400-1RZ1-R-3C2.5(3G2.5)

3×(G)2.5

0.7

1.1

9.8

130

MTX400-1RZ1-R-3C4(3G4)

3×(G)4

0.9

1.2

12.0

190

MTX400-1RZ1-R-3C6(3G6)

3×(G)6

0.9

1.2

13.2

250

MTX400-1RZ1-R-3C10

3×10

0.9

1.3

15.2

380

MTX400-1RZ1-R-3C16(3G16)

3×16

0.9

1.3

17.5

560

MTX400-1RZ1-R-3C25

3×25

0.9

1.5

20.7

875

MTX400-1RZ1-R-3C35

3×35

0.9

1.6

23.5

1220

MTX400-1RZ1-R-3C35S

3×35 (sector shaped)

0.9

1.5

20.1

1135

MTX400-1RZ1-R-3C50

3×50

1.0

1.7

26.7

1780

MTX400-1RZ1-R-3C50S

3×50 (sector shaped)

1.0

1.7

22.8

1530

MTX400-1RZ1-R-3C70S

3×70 (sector shaped)

1.1

1.8

26.7

2150

MTX400-1RZ1-R-3C95S

3×95 (sector shaped)

1.1

1.9

30.2

2900

MTX400-1RZ1-R-3C120S

3×120 (sector shaped)

1.2

2.1

34.0

3675

MTX400-1RZ1-R-4C1.5(4G1.5)

4×(G)1.5

0.7

1.1

9.6

120

MTX400-1RZ1-R-4C2.5(4G2.5)

4×(G)2.5

0.7

1.1

10.7

165

MTX400-1RZ1-R-4C4(4G4)

4×(G)4

0.9

1.2

13.2

240

MTX400-1RZ1-R-4C6(4G6)

4×(G)6

0.9

1.2

14.5

320

MTX400-1RZ1-R-4C10(4G10)

4×(G)10

0.9

1.3

16.7

490

MTX400-1RZ1-R-4C16(4G16)

4×(G)16

0.9

1.4

19.5

740

MTX400-1RZ1-R-4C25(4G25)

4×(G)25

0.9

1.5

22.8

1145

MTX400-1RZ1-R-4G35

4G35

0.9

1.7

26.0

1515

MTX400-1RZ1-R-4G50

4G50

1.0

1.8

29.7

2340

MTX400-1RZ1-R-5C1.5(5G1.5)

5×(G)1.5

0.7

1.1

10.5

145

MTX400-1RZ1-R-5C2.5(5G2.5)

5×(G)2.5

0.7

1.2

11.9

205

MTX400-1RZ1-R-5G6

5G6

0.9

1.3

16.1

400

MTX400-1RZ1-R-5G16

5G16

0.9

1.5

21.6

920

MTX400-1RZ1-R-6C1.5

6×1.5

0.7

1.2

11.6

180

MTX400-1RZ1-R-7C1.5

7×1.5

0.7

1.2

11.7

195

MTX400-1RZ1-R-8C1.5(8G1.5)

8×(G)1.5

0.7

1.2

12.7

225

MTX400-1RZ1-R-10C1.5

10×1.5

0.7

1.3

14.8

275

MTX400-1RZ1-R-12C1.5

12×1.5

0.7

1.3

15.3

315

MTX400-1RZ1-R-16C1.5

16×1.5

0.7

1.4

17.2

410

MTX400-1RZ1-R-19C1.5

19×1.5

0.7

1.4

18.1

470

MTX400-1RZ1-R-24C1.5

24×1.5

0.7

1.5

21.3

620

MTX400-1RZ1-R-5C2.5

5×2.5

0.7

1.2

11.9

210

MTX400-1RZ1-R-7C2.5

7×2.5

0.7

1.2

13.2

280

MTX400-1RZ1-R-12C2.5

12×2.5

0.7

1.3

17.4

460

MTX400-1RZ1-R-19C2.5

19×2.5

0.7

1.4

20.6

690

MTX400-1RZ1-R-24C2.5

24×2.5

0.7

1.5

24.3

880

MTX400-1RZ1-R-27C2.5

27×2.5

0.7

1.5

24.6

970

MTX400-1RZ1-R-37C2.5

37×2.5

0.7

1.6

27.7

1300
